LED Shileded POE RJ45 PCB Jack XFVOIP5E-C1-4MS Side Entry

  • 1
  • 2

Brand Name : LINK-PP

Model Number : XFVOIP5E-C1-4MS

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Optional

PN : XFVOIP5E-C1-4MS

LINK-PP PN : LPJ4514DNL

Speed : 10/100 Base-T

Application-Lan : Ethernet(PoE)

Temperature : - 40 TO + 85

File : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

LED Shileded POE RJ45 PCB Jack XFVOIP5E-C1-4MS Side Entry

Quick Details

  • XFVOIP5E-C1-4MS
  • POE RJ45 Connector
  • Designed for network interface card application
  • satisfied to CAT 5 & 6 Fast Ethernet Cable or better UTP
  • RJ45 Connector with integrated transformer
  • Meets or exceeds IEEE 802.3 standard for 100 Base-T
  • Materials are totally RoHS and UL94-V0 compliant
  • RoHS peak solder rating 260°C
  • ISO9001,SGS,UL,CE,REACH
  • Cross PN:LPJ4514DNL

Features

  • Power Over Ethernet (PoE) Magnetic Connectors with Tab-Up and Tab-Down with/without LED's and EMI tabs

  • Single port, Multi-port and Stackable configurations (Thru-hole)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction

Specifications

Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJ4514DNL
XFMRC Part Number XFVOIP5E-C1-4MS
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST

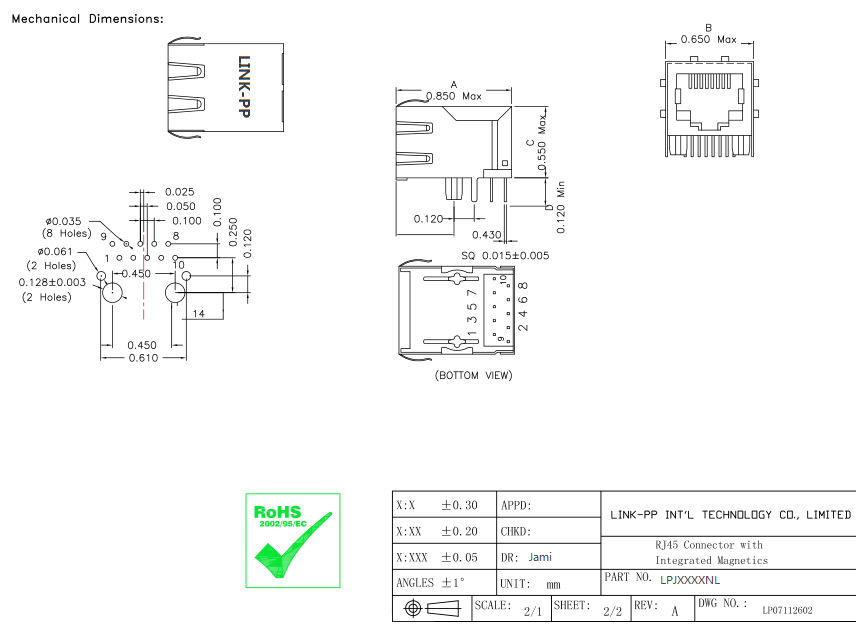

Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0.838
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Datasheets E-mail Inquiry to Summer@link-PP.com

BeagleBone Black

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.

LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti

LED Shileded POE RJ45 PCB Jack XFVOIP5E-C1-4MS Side Entry

Related PN

We Can Also Make These Part Number Below
XFVOIP5E-C1-4MS LPJ4514DNL
XMP-P25-10F0-GY-CT1 XMH-01-5-PL2-111-1P0
XMP-01-4-P25-111-1P0 XMG-01-4-P23-111-1P0
XMP-P31FAT-10F0-NL XMP-01-4-P25-111-1P0
XMH-T02-041-423-012 XPJG-1-01K-5-PN1-210
XMP-9808-81011-140D-T3 XPJG-1-01A-4-D51-310
XMH-9771-8812-S3L2T2-EU XPJG-1-01A-4-D51-110
XMP-XARJ-1032NL XPJG-1-01-8A-G31-1-PD31
XMPH-TRJK0013AHNL-GE1 XPJG-01J-1-P31-110
XMPH-TRJK2001AHNL XMH-PD2F-10H0-GY
XMPH-061Q-12F6-GY(RMP-061Q-12F6-GY) XPJH-RMP-061L-10W6-NL
XMPH-01D-1-D25-110 XMP-RMP-LC4P-16F6-NL
XMPH-01R-4-Q23-170 XPH-RMP-061L-16W6-2Y
XMPH-XARJ-8017CNL XPJH-RMP-061K-16W6-NL
XMPH-SC851-901NL XMG-TRJ4190GENL
XMP-TRJK0010AGNL XMH-TRJ6100AGNL-SG1
XMH-TRJ16003AZNL XPJH-01D-1-D25-110(XMH-01-1-PP1-111-1P0)
XMH-TRJ1514AENL XMP-01M-0-H61-11P
XMP-TRJ16249AZNL XMP-01D-4-L61-11P
XMPH-TRJK4013AHNL XMP-01J-1-P12-C01
XMP-061K-16W6-2Y-M XPJH-1-01-8C-E3M-4-PD11
XMP-01J-1-P12-T01 XPJH-01D-4-PG1-170-DAQ
XMP-9774-TF91121-006-CX1 XPJH-01D-4-P23-170-DAQ-C
XMP-1104D6014 XPJH-01D-4-P23-170-DAQ
XMP-TRJK1046AONL XPJH-01D-0-PH1-070
HRJ-YL1B11M2000BNL XPJH-01F-4-P25-176
XPJH-01L-4-R07-170 XPJH-01F-5-PN1-170
XPJH-01R-0-Q22-07C-OAS XPJH-01R-0-PJ1-07K-BRD
XPJH-01R-0-R09-070 XPJH-RN6-1640F51F
XPJH-061LAT-10W6-NL XMH-YL5917222X6PLE
XPJH-01R-0-F02-070 XPJH-1-26-8A-S4C-0-PD01
XPJH-061KAT-16W6-NL XPJH-28A-Z-P01-970
XPJH-01R-4-D11-171 XPJH-28D-0-H65-070
XPJH-1-01-8A-C41-4-PE11 XPJH-28D-0-H01-01
XPJG-01J-4-P25-110 XPJH-2-28-8C-T4D-0-PH01
XPJG-01J-1-P28-110 XMH-YL5917122X1LE
XPJG-01J-4-PH2-110 XMH-YL5917212X1LE
XPJG-01K-5-PN1-210 XPJH-21D-Z-P21-970-MHF
XPJG-01A-4-D51-310 XPJH-1-21-8A-Q30-Z-PD21
XPJG-01A-4-D51-110 XPJH-TRJ17002A109NL
XPJG-1-01-8A-G31-1-PD31 XPJH-1-21-8A-Q30-4-PD22
XMG-TRJ26514AENL XMH-9760-DH3B120-286
XPJH-1208C1009 XPJH-24A-Z-P01-970
XPG-SK02-411008POENL XMH-YL5917222X4PLE
XPJG-1-04-8A-G34-4-PD23 XPJH-24D-Z-P21-970-MHF
XPJH-04L-8-R08-4V0 XMH-9760-DH3D120-286
XPJH-04L-8-R08-4V0-JU XPJH-26A-Z-P01-970
XPJH-04L-5-R10-1S0 XMH-9760-DH3G130-286
XPJH-04D-1-D34-190 XPH-TRJ46253AENL

LED Shileded POE RJ45 PCB Jack XFVOIP5E-C1-4MS Side Entry

Order Selection

POE RJ45 Connector Available Of LINK-PP
Type PCB Mount Thru-Hole (THT)
Number of Ports 1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
Shield and Unshield Available in Shield and Unshield
Connector Type RJ45
PoE Power Over Ethernet Integrated
Magnetics Magnetic Integrated
Magnetics Speed Magnetics 10/100Mbps and 1000Mbps
Packaging Tray Options
Tab Location Tab Up and Tab Down Options
LED Color Optional
Number of Positions 8 and 10 Positions or Others
Number of Contacts 8 and 10 Contacts or Others
RoHS Compliant Yes
Solder Temperature 230 TO 240 degr.C 5-10 SECONDS
Solder High-Temp Option 260 degr.C 5-10 SECONDS
High Temperature Option -40 to +85 Degrees F
Operating Temperature -0 to 70 Degrees C
